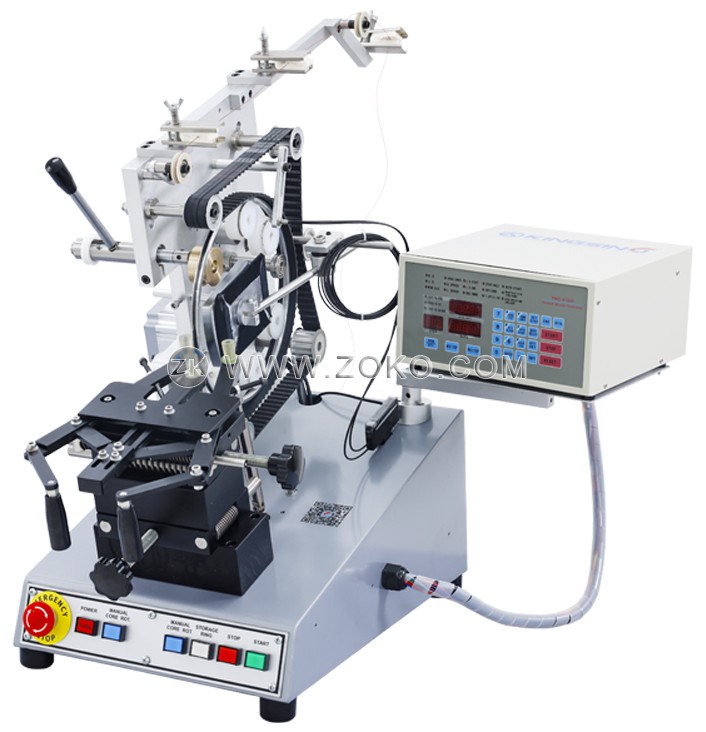

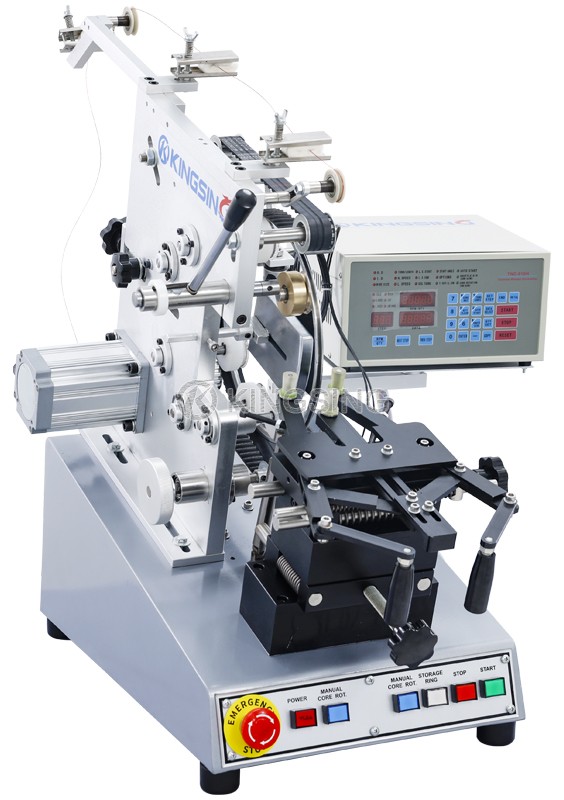

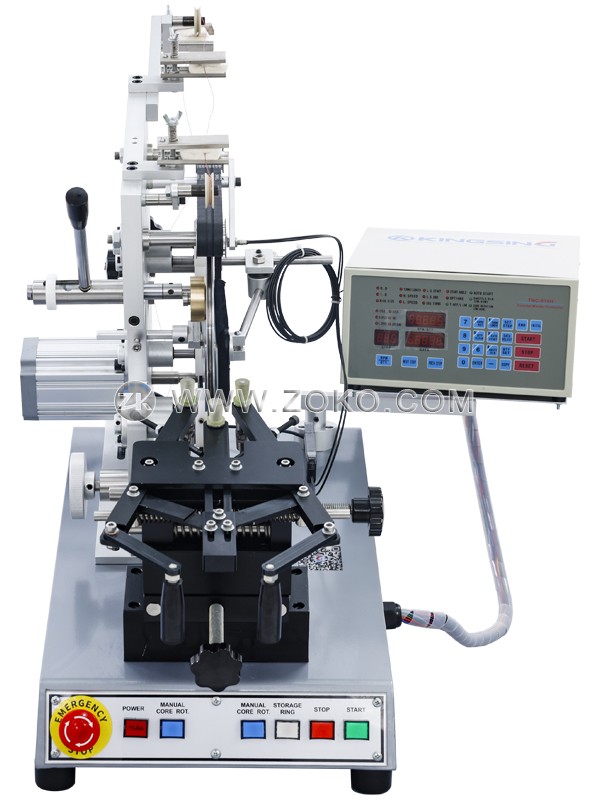

The KS-W537 digital toroidal winding machine uses the TWC-01 digital controller and is an automatic and precise digital toroidal winding machine.
It has the following advantages:
Various compatible winding heads can be chosen to increase the equipment's general applicability and reduce purchasing costs.
Advanced magnetic core handling methods enhance production efficiency.
An encoder is used for precise measurement of winding length, allowing for accurate calculations and reducing packaging errors.
Optical optional toroidal measuring instruments are used for fast and accurate measurements.
It offers a wide range of applicable wire diameter intervals, making it versatile.
Maximum speed: 1500rpm
Spindle motor: 300W brushless motor
Wire parking motor: Stepper motor
Memory capacity: 999groups
Power Supply: AC220V 50/60 Hz
| Winding Head | B4 Belt Type | B6 Belt Type | S4 Slide Type | S6 Slide Type |
| Core Outer Diameter | 5-60 mm | 8-60 mm | 8-60 mm | 8-60 mm |
| Minimum Completed Inner Diameter | 3 mm | 6 mm | 7 mm | 45 mm |
| Core Height (MAX) | 25 mm | 45 mm | 25 mm | 25 mm |
| Applicable Wire Diameter | 0.12-0.9 mm | 0.25-0.9 mm | 0.05-0.35 mm | 0.05-0.4 mm |
| Winding Width | 100 mm | 150 mm | 100 mm | 150 mm |
